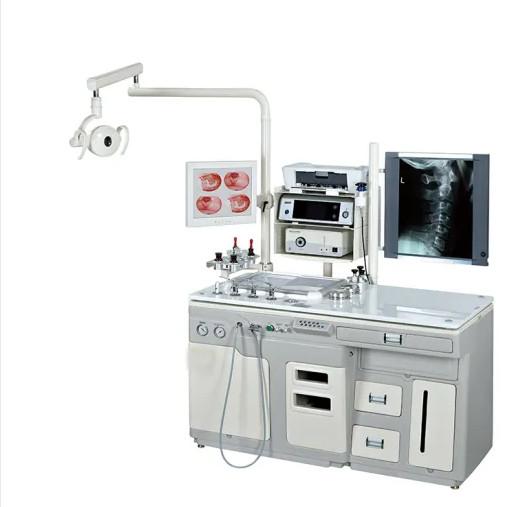

Surgical instrument ENT surgical unit / ent opd unit for medical diagnose
Product Parameter
Power supply tension: 220V, 50Hz Fuse: F10AL/250V
Fuse: F1A/250V, F10AL/250V
Suction at 1500ml/min max, 850mmHg max
Ear rinsing with 37°C~42°C
Alternatively ear rinsing with 37°C~42°C with compressed air system
Compressed air for medication spraying, max. 3 bars
Electric power supply for LED, 12V, 10W, 0.83A, fuse: F1A/250V
LED cold light source 12V, 10W, 0.83A fuse: F1A/250V
Application:For ear, nose, throat diagnose and treatment
Standard equipment
| STANDARD EQUIPMENT | Qty |
| LED headlight | 1 |
| Spray gun (it can match different function spray tips 3 pieces) | 1 |
| Suction gun | 1 |
| Blowing gun | 1 |
| Laryngoscope pre-heater | 1 |
| Built-in LED light source | 1 |
| Luxury thin film viewer | 1 |
| Blow-off equipment system (with warning system) | 1 |
| Instrument tray | 2 |
| Cotton cup | 4 |
| Medical bottle | 8 |
| Built-in waste tank | 1 |
| Built-in equipment recycle tank | 1 |
| Built-in immersion sterilization cup | 1 |
| Doctor chair | 1 |
| 7 inch intelligent touched control system | 1 |
| Vacuum pump | 1 |
| Compressor | 1 |
| Air storage tank | 1 |
Options
| Options | Qty |
| 1/3 CCD medical camera | 1 |
| LED cold light source | 1 |
| Fiber cable | 1 |
| Computer set | 1 |
| Pinter | |
| Professional ent workstation software | |
| LCD monitor | 1 |
| Ear rinsing system | 1 |
| Otoscope | 1 |
| nasoscope | 1 |
| Laryngoscope | 1 |
| ENT microscope | 1 |
| ENT chair | 1 |
Specification
| Size: 1240*625*770 Power supply: 220V, 50-60Hz, Power: 0.8KW | |
| It contains 4 sprayers, can be used for different medicines.
3-9ml/min And the medical bottle can be easily dismantled for cleaning.
| |
| Suction unit The suction gun is supplied with 5 suction tips, power of suction is 0-900mmHg adjustable. It operates automatcally, when you pick the handpiece up, the suction is activated, when you put it back, the suction will continue for 10 more seconds, in order to clean the remain in the hose | |
| The suction bottle is 2500ml*2 And with alarm system, when the content reaches the upper limit, An acoustic alarm will be raised | |
| Mirror heating unit is controlled from the micro-processor And automatically shut down after a cycle of 10 seconds | |
| LED cold light source: 12v10w Can be used for endoscopes | |
| Intellectual control system: Controls the mirror heater, illumination light And the movement of the chair Automatic shut down after 4 hours of idle In power saving mode after 1 hour of idle |
|
|
